SWS is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools. We utilize advanced downhole tool manufacturing technology from the U.S. and Canada to provide casing accessories that exceed industry quality standards, meeting the challenging cementing tool needs of oilfields worldwide.
Our 78,000 sq ft manufacturing facility features modern CNC machining, fabrication and processing equipment, along with testing and inspection facilities, plus raw material and production storage capabilities.
Our product line includes:
| Specification | Φ140(5 1/2") | Φ168.3(6 5/8"") | Φ178(7") | Φ244.5(9 5/8") | Φ323.9(12 3/4") | Φ339.7(13 3/8") |
|---|---|---|---|---|---|---|
| Peak working pressure (Mpa) | 35 | 35 | 35 | 35 | 21 | 21 |
| Maximum test pressure (Mpa) | 54 | 54 | 54 | 54 | 35 | 35 |
| Connect buckle type | LTC/BTC | LTC/BTC | LTC/BTC | LTC/BTC | LTC/BTC | LTC/BTC |
| Tube exchange interface | 2"1502 Union | 2"1502 Union | 2"1502 Union | 2"1502 Union | 2"1502 Union | 2"1502 Union |
| Ontology inner diameter (mm) | Φ142 | Φ170 | Φ181 | Φ248 | Φ327 | Φ342 |
| Length of upper stop cavity (mm) | 425 | 425 | 425 | 450 | 450 | 450 |
| Length of lower stop cavity (mm) | 425 | 425 | 425 | 450 | 450 | 450 |
| Overall length (mm) | 1900 | 1926 | 1926 | 2126 | 2120 | 2120 |
| Specifications | Φ140(5 1/2") | Φ178(7") | Φ244.5(9 5/8") | Φ339.7(13 3/8") |
|---|---|---|---|---|
| Peak working pressure (Mpa) | 35 | 35 | 35 | 21 |
| Maximum test pressure (Mpa) | 50 | 50 | 50 | 35 |
| Connect buckle type | LTC/BTC | LTC/BTC | LTC/BTC | LTC/BTC |
| Tube exchange interface | 2"1502 Union | 2"1502 Union | 2"1502 Union | 2"1502 Union |
| Ontology inner diameter (mm) | Φ142 | Φ181 | Φ248 | Φ342 |
| Length of upper stop cavity (mm) | 425 | 425 | 450 | 450 |
| Overall length (mm) | 1516 | 1526 | 1585 | 1593 |

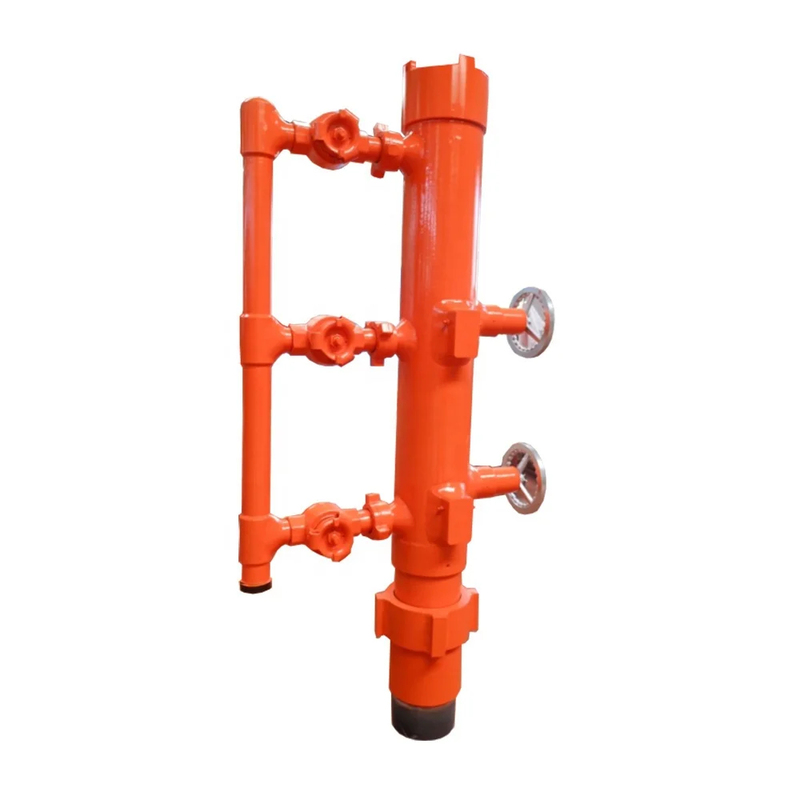

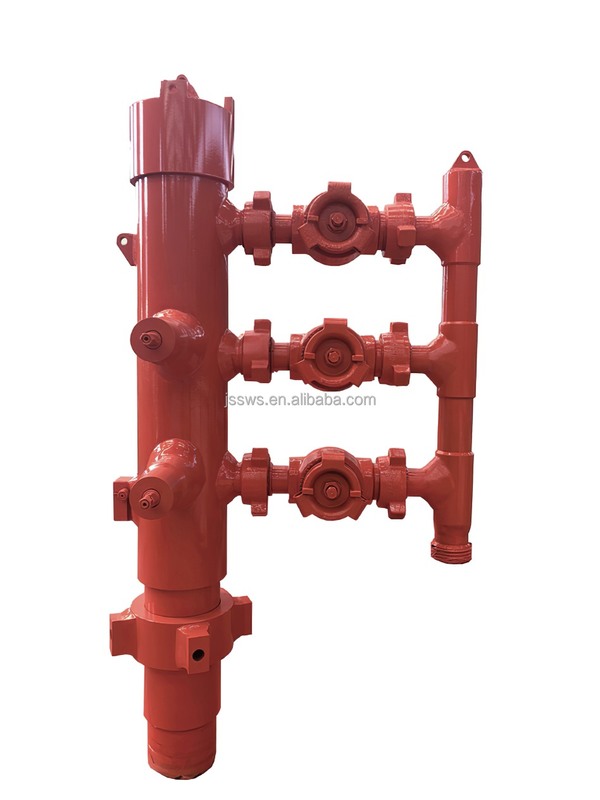

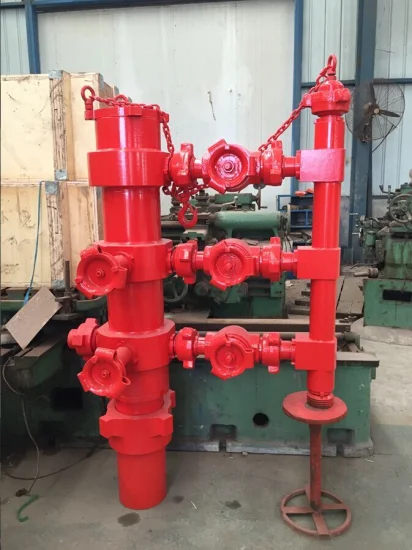

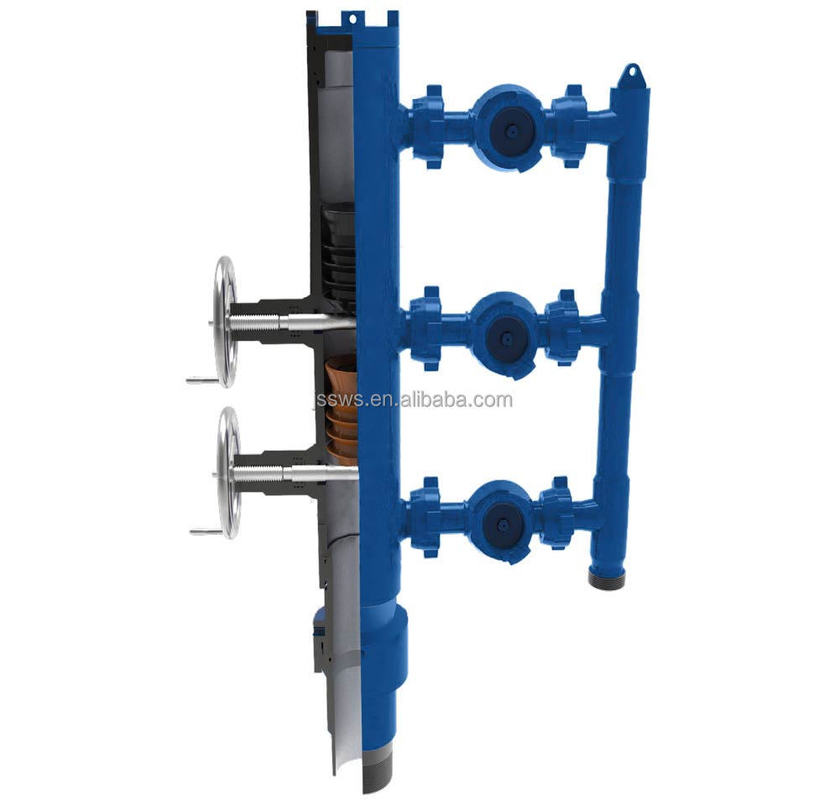

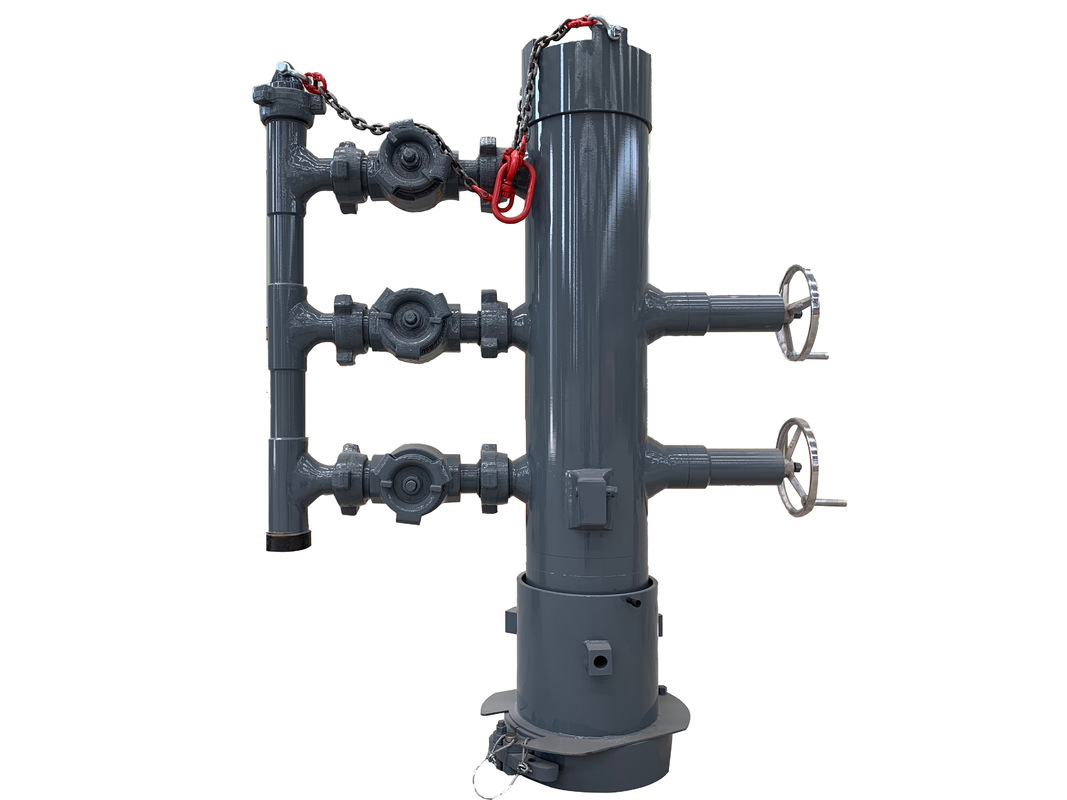

The cementing head is designed to hold a cementing plug before it is pumped down the casing during the cementing operation. In most operations, a bottom plug is launched before the spacer or cement slurry, followed by the top plug after the spacer fluid. A manifold incorporated into the cement head assembly allows connection of a fluid circulation line.
The double plugs cementing head is a special tool for pumping slurry and releasing plugs. It can couple with two plugs simultaneously, allowing drilling fluid to fill into the casing in turn quickly. This simplifies the cementing operation and prevents cement pollution.
