API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

API standard float shoes

oilfield drilling float shoes

5-20 inch cementing float equipment

Nguồn gốc:

Jiangsu, Trung Quốc

Hàng hiệu:

SWS

Chứng nhận:

API

Liên hệ chúng tôi

Yêu cầu báo giá

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

Thông tin chi tiết sản phẩm

Kích thước:

5"-20"

Cân nặng:

10 kg

Vật liệu:

Thép carbon / thép không gỉ 304

Loại chủ đề:

STC LTC BTC EUE NUE XC

BORE OD:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Id bore:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Min lỗ:

2 ", 2 3/8"

Xếp hạng áp lực:

4351, 3626 lb/in²

Kích thước van:

70mm, 90mm

Xếp hạng nhiệt độ:

150 ° C, 204 ° C.

Vật liệu niêm phong:

HNBR

Vật liệu mùa xuân:

Phosphor đồng C510

Van vật liệu cơ thể:

Phenolic sợi

Kháng áp lực:

70MPa

Các thành phần cốt lõi:

Thép

Sản phẩm liên quan

HPHT Float Collar for Extreme Conditions, Cement Type with Double Valve System, Oil Drilling Equipment for Deep Wells

Nhận giá tốt nhất

Professional Float Shoe and Collar Set for Oilfield Cementing, Dual Valve with Self-Locking Feature, API Certified

Nhận giá tốt nhất

Eccentric Float Shoe for Petroleum Industry, Aluminum Core Construction, Oil Drilling Cementing Tool

Nhận giá tốt nhất

High Strength Aluminum Float Collar for Petroleum Industry, Self-Locking Mechanism, Oil Drilling Equipment

Nhận giá tốt nhất

Liên hệ chúng tôi

86-519-83553967

Leo@service-js.com

86-519-83553967

Liên hệ ngay

Mô tả Sản phẩm

Hot Product API Cementing Tools - Float Collar, Float Shoe & Guiding Shoe

Company Profile

Product Description

Float equipment serves as essential components in casing equipment for primary cementing operations. These precision tools guide the casing to total depth while preventing contaminated mud from entering the casing string.

Key functions and benefits:

Provides landing point for casing wiper plugs
Reinforces the lower end of casing strings
Ensures accurate cement slurry displacement
Features Hi Flow valves to minimize fluid erosion and pressure drop

Technical Specifications

Available in two valve sizes: 70mm and 90mm

Material specifications:

Valve components: PDC drillable composite plastic
Standard seal rating: 150°C (204°C optional)
Valve body: Fibre phenolic, rated for 70MPa and 204°C
Spring: Canadian phosphor bronze C510 material with high restoring force
Plunger seal: HNBR material rated for 70MPa and 204°C

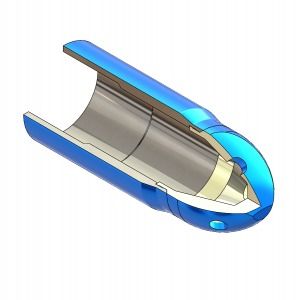

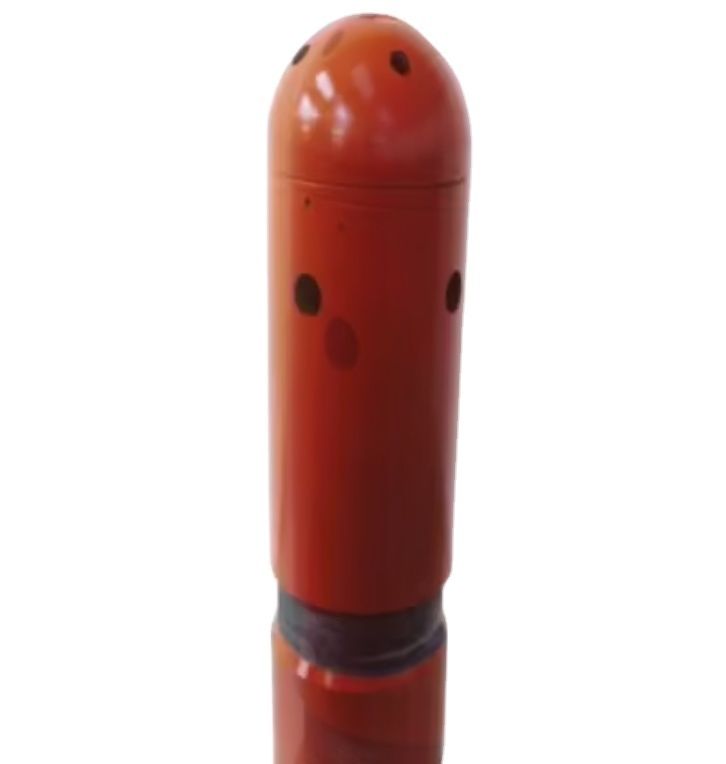

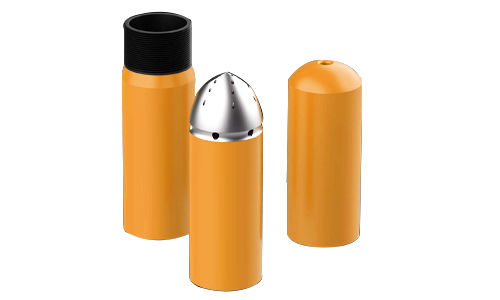

Product Images

Technical Specifications

Name	Size (in)	Bore O.D. (in)	Bore I.D. (in)	Min Bore Parameter (in)	Thread Type	lb/in²
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Our Manufacturing Facility

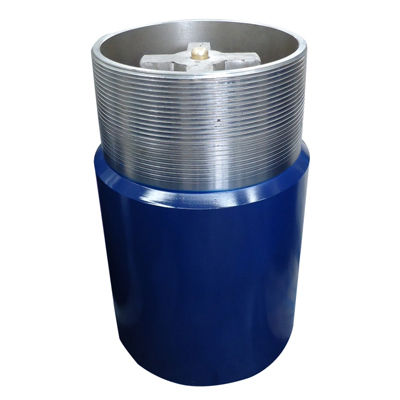

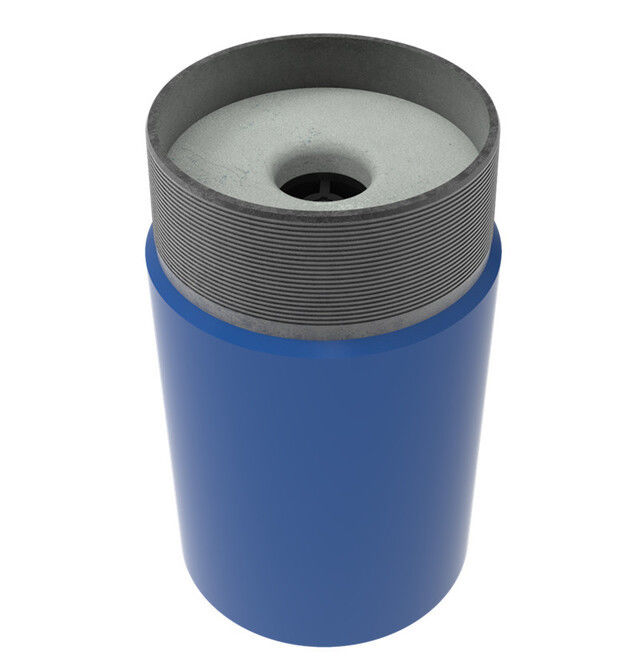

Device Images

Industry Exhibitions

Quality Certifications

Product Packaging

Frequently Asked Questions

Q1: When can I get the price?

A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate this in your email for priority handling.

Q2: Could I have prices of your products?

A: Absolutely. Please send us an email with your requirements, and we'll respond within 24 hours with detailed pricing information.

Q3: Can I get a lower price if I order large quantities?

A: Yes, we offer volume discounts. Larger quantity orders qualify for progressively better pricing.

Q4: Do you inspect the finished products?

A: Yes, our QC department conducts thorough inspections at every production stage and performs final quality checks before shipping.

Q5: What about the lead time for mass production?

A: Lead times vary based on order quantity and seasonal demand. We'll provide an accurate production timeline when we receive your specific requirements.
